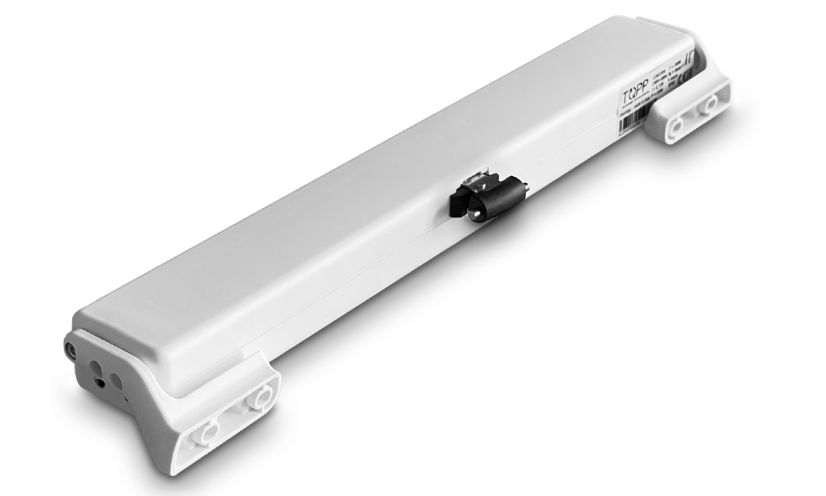

AFC20
Chain actuator | Thrust force 300 N | Max stroke 360 mm
Electric AFC20 actuator with double link articulated chain, enclosed in a suitable casing, with different mounting accessories for top and bottom hung windows. Operation at 230V 50Hz or, as an alternative, at 24V DC. Maximum applicable load 300N. Fast hooking and unhooking system of the chain to the window. Adjustment of the force and of the stroke at 240 or 360mm by external knobs (for AFC20 tandem 360mm fixed stroke, special stroke optional on request). Electronic end of stroke in closing by current absorption control.
CE marked device.

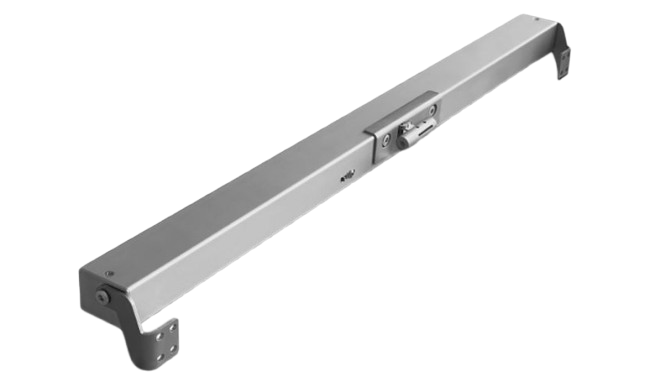

AFC50
Chain actuator | Thrust force 500N | Stroke 600mm - 800mm - 1000mm
Alu forme electric actuator model AFC50 with double-link chain, in an aluminium profile, available with brackets and accessories for skylights, bottom hung or top hung windows. Operation at 230V 50Hz. Max. thrust force 500N. Stroke 600 - 800 - 1000 mm. Patented chain terminal, attachment to the frame and chain load adjustment to ensure maximum resistance to high loads with long strokes. Preset for the synchronous operation of two actuators on the same window.
CE marked device.

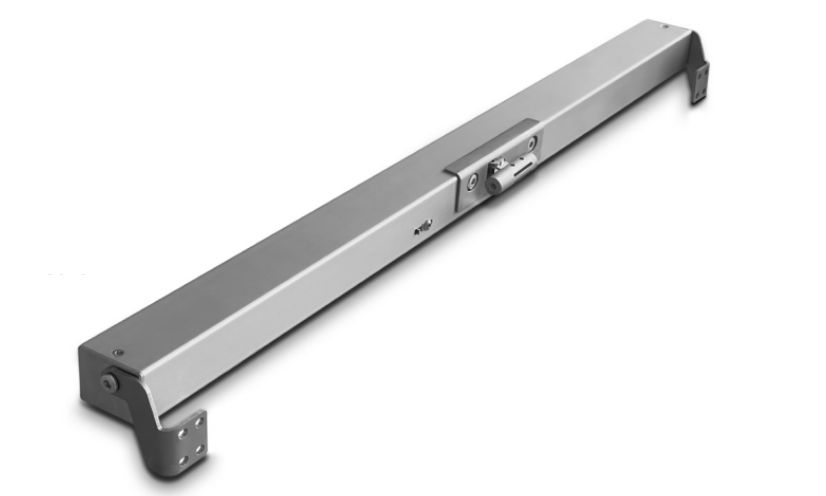

AFC50 RWA
Chain actuator thrust force 500N | Stroke 600mm - 800mm - 1000mm
Alu forme electric actuator model AFC50 RWA with double-link chain, in an aluminium profile, available with brackets and accessories for skylights, bottom hung or top hung windows. Operation at 24V DC. Max. thrust force 500N. Stroke 600 - 800 - 1000 mm. Patented chain terminal, attachment to the frame and chain load adjustment to ensure maximum resistance to high loads with long strokes. Preset for the synchronous operation of two actuators on the same window.
CE marked device, 600mm and 800mm strokes tested in accordance with the EN12101-2 Standard for smoke ventilation applications.

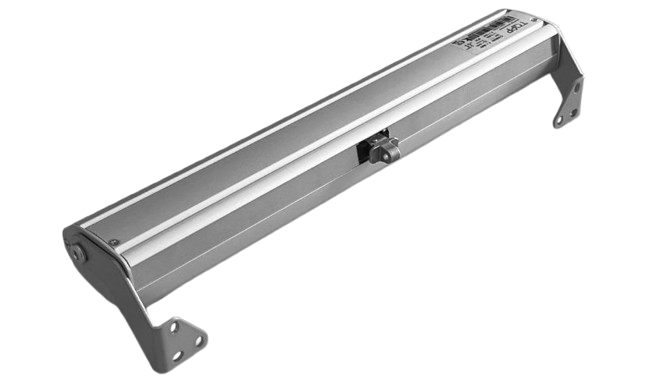

AFC160 RWA
Chain actuator | Thrust force 300N | Stroke 360mm - 600mm - 1000mm
Electric actuator Alu forme model AFC160 RWA with double-link chain, in an elegant die-cast aluminium profile, complete with brackets and accessories for bottom hung windows outward opening for smoke evacuation application.
Operation at 24V DC. Max. Thrust force 300N. Stroke 360 - 600 - 1000 mm.

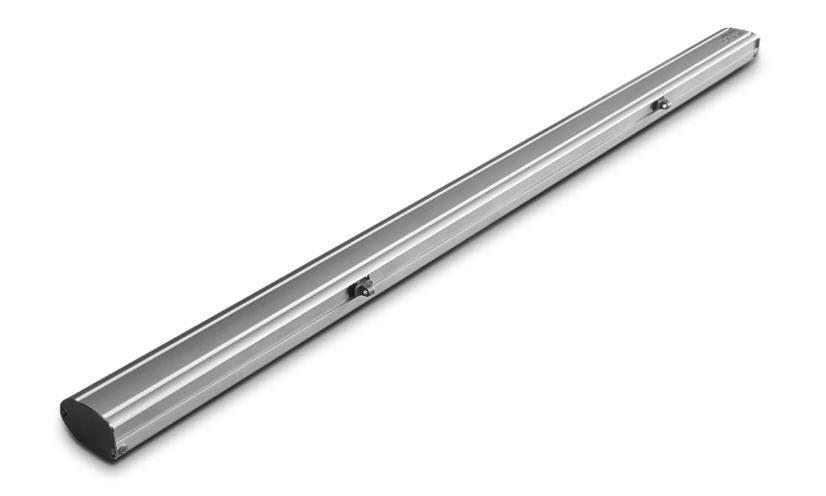

AFC160 RWA Double Chain
Dual push points chain actuator | Thrust force max. 600N | Stroke 360mm - 600mm
Electric actuator Alu forme model AFC160 RWA with 2 double-link chains, in an elegant die-cast aluminium profile, complete with brackets and accessories for bottom hung windows outward opening for smoke evacuation application. Operation at 24V DC. Max. thrust force 300N. Stroke 360 - 600 mm. Electronic end of stroke in closing by current absorption control.
CE marked device, tested in accordance with the EN12101-2 Standard for smoke ventilation applications.

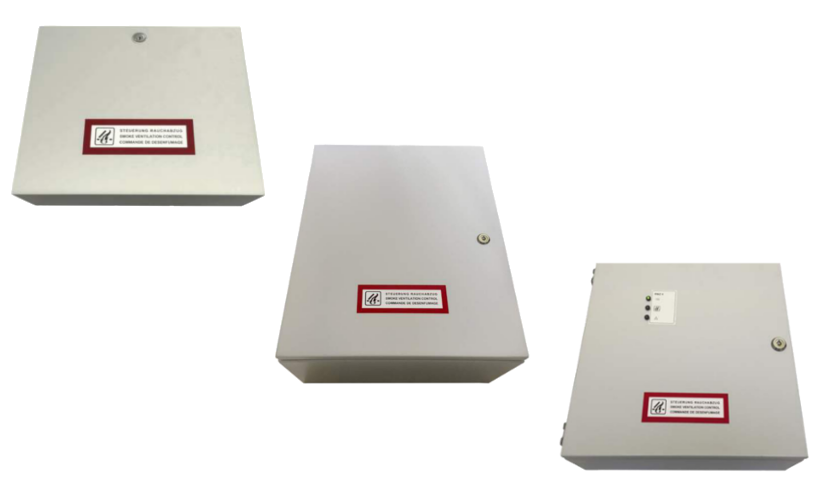

RWA Control Units
RWZ control units for smoke and heat evacuation systems.
The control units for smoke and heat evacuation have the following specifications and meet the following requirements (some technical characteristics may vary according to the RWZ control unit model):
- Output for the connection of 24V actuators.
- VdS approved according to the VdS 2581 and VdS 2593 directives.
- Internal power supply certified according to DIN EN 12101-10.
- Control unit tested according to ISO 21927-9.
- 3 signal lines:
- Automatic fire detector
- RT2 manual emergency push button with indicators for operation, alarm, malfunction and reset button
- Connection to a fire alarm control panel or additional automation fire detectors
- Alarm Reset using the RT2 button or in the control centre.
- Selectable functions:
- "Auto-close" (automatic closure after resetting an alarm)
- "Malfunction = Alarm" (alarm upon malfunction of a signal line)
- "Automatic OFF" (the automatic commands - apart from the alarm - are disabled)
- "Thermal alarm" (alarm on exceeding temperature of 70 °C inside the enclosure)
- Possibility of connecting ventilation buttons
- Adjustable ventilation and time positions
- Possibility of connecting an external wind and rain control
- Normal operation, alarm and malfunction displayed on the emergency push button
- Internal service display showing detailed status information for installation and maintenance.
- Plug-in connection terminals (apart from actuator output).
- Upon direct reverse of travel, actuators are briefly stopped before changing the sense
