Profiled Aluform siding panels are used for covering walls and may be dimensioned according to conventional specifications.

The sidings can be factory-coated with an anti-condensation or anti-drumming agent layer:

  • Standard profile with a smooth surface
  • Profile with macro lining
  • Profile with micro lining
PRODUCTS

All panels can be supplied either with a normal cut edge (standard) or with an additional bent-down end on one or both sides.

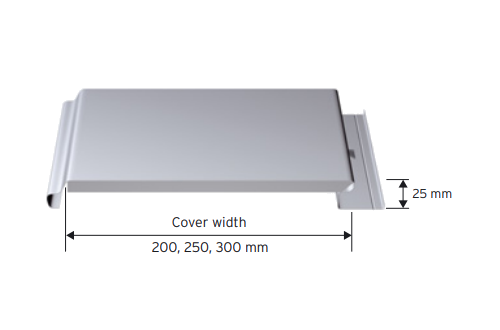

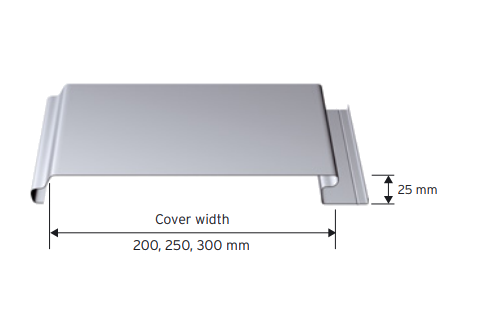

Aluform Siding 25/200, 250, 300, smooth surface
media
Profile height (mm) Cover width (mm) Sheet thickness tN (mm) Weight (kg/m2)
25 200 1.0 4.40
2.0 5.28
25 250 1.00 4.07
1.20 4.88
25 300 1.20 4.61

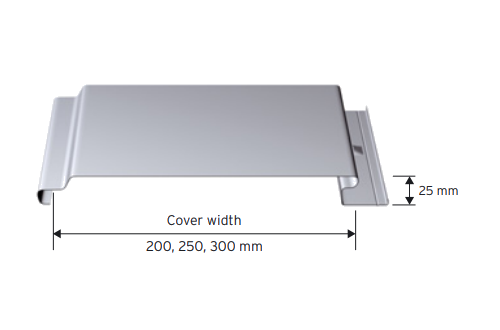

Aluform Siding 25/200, 250, 300 with bent-down edge, smooth surface
media

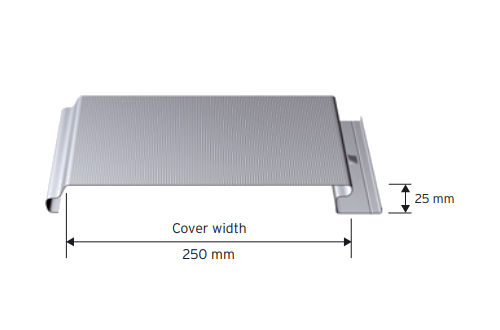

Aluform Siding 25/250, micro lined surface
media

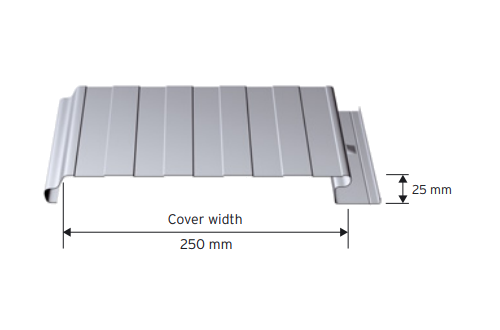

Aluform Siding 25/250, macro lined surface
media

Product overview Siding Profiles Connections and panel joints

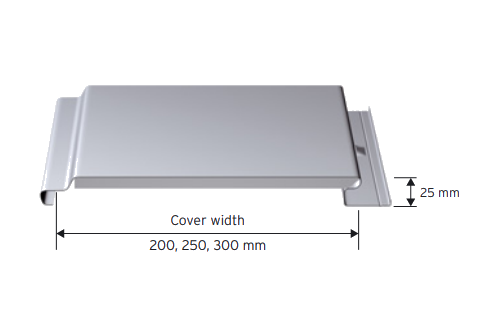

Aluform Siding 25/200, 250, 300, shadow gap design, smooth surface
media
Profile height (mm) Cover width (mm) Sheet thickness tN (mm) Weight (kg/m2)
25 200 1.0 4.40
2.0 5.28
25 250 1.00 4.07
1.20 4.88
25 300 1.20 4.61
Aluform Siding 25/200, 250, 300, shadow gap design and bent-down edge, smooth surface
media
