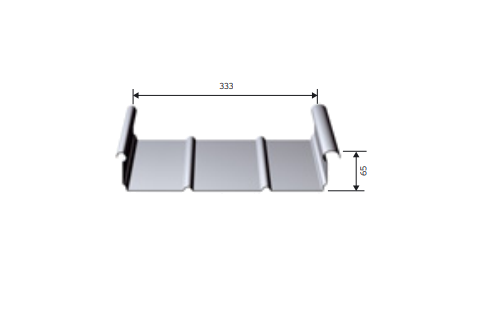

FALZRIPP® 50/333
| Sheet thickness tN (mm) | Weight (kg/m2) |
|---|---|
| 0,8 | 3,14 |
| 0,9 | 3,54 |
| 1,0 | 3,93 |
Services
FALZRIPP® and ALUDECK® aluminium profiles to design innovative architecture
For decades, ALUFORM has been manufacturing reliable aluminium roof and wall systems using trapezoidal or sinusoidal profiles as well as the ALUDECK® and ALUFALZ® seam profiles. We have now included the INTERFALZ® product range and have thus expanded and complemented our existing range of seam profiles. (For ALUFALZ products, please see additional brochure.)
ALUDECK® and FALZRIPP® are trough-shaped, roll-formed profiled panels with flanges at the edges that are shaped in such a way as to enable joint formation. While the FALZRIPP® profile system requires automated flanging of the joint, ALUDECK® systems are installed by "twisting" the profiled panels over the holders.
Services
INTERFALZ® products first-class projects in all kinds and sizes
Aluminium standing seam systems have unique advantages thanks to the proven profile and the positive properties of the AlMn1Mg0.5 alloy used:
- Very light, so even suitable for renovating roofs with substructures with low load-bearing capacities
- High load-bearing capacity
- Maintenance-free and durable
- Recyclable, Aesthetic, Non-flammable
- Easy to process , Easy to install
- No penetration of connecting materials due to installation method
PRODUCTS
INTERFALZ® standing seam systems FALZRIPP®

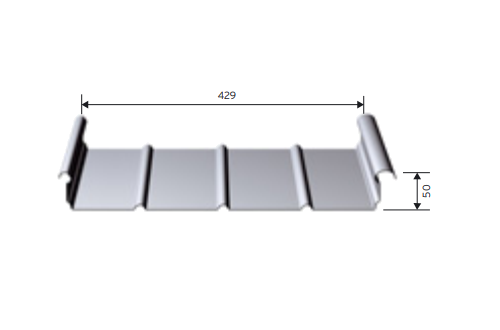

FALZRIPP® 50/429
| Sheet thickness tN (mm) | Weight (kg/m2) |
|---|---|
| 0,8 | 2,95 |
| 0,9 | 3,32 |
| 1,0 | 3,68 |

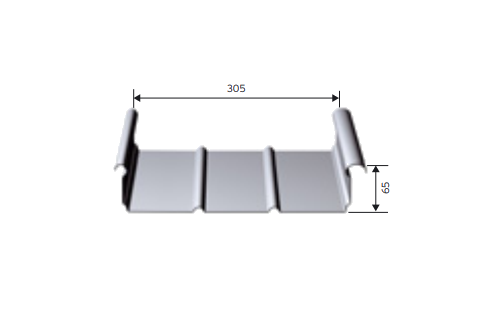

FALZRIPP® 65/305
| Sheet thickness tN (mm) | Weight (kg/m2) |
|---|---|
| 0,8 | 3,45 |
| 0,9 | 3,86 |
| 1,0 | 4,29 |
FALZRIPP® 65/333
| Sheet thickness tN (mm) | Weight (kg/m2) |
|---|---|
| 0,8 | 3,35 |
| 0,9 | 3,76 |
| 1,0 | 4,17 |

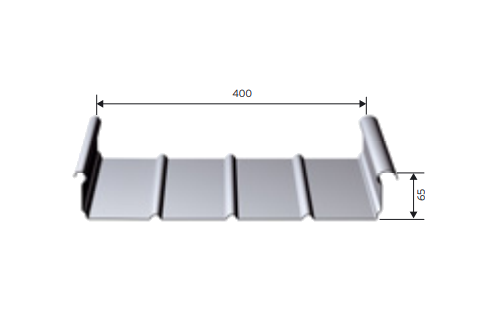

FALZRIPP® 65/400
| Sheet thickness tN (mm) | Weight (kg/m2) |
|---|---|
| 0,8 | 3,17 |
| 0,9 | 3,56 |
| 1,0 | 3,93 |

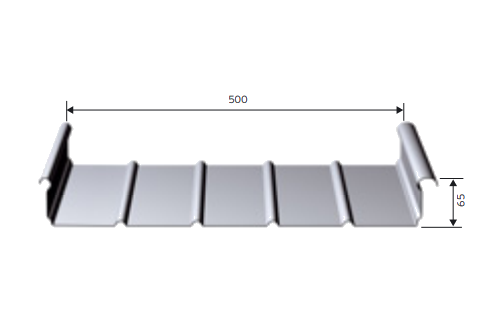

FALZRIPP® 65/500
| Sheet thickness tN (mm) | Weight (kg/m2) |
|---|---|
| 0,8 | 2,97 |
| 0,9 | 3,34 |
| 1,0 | 3,71 |
