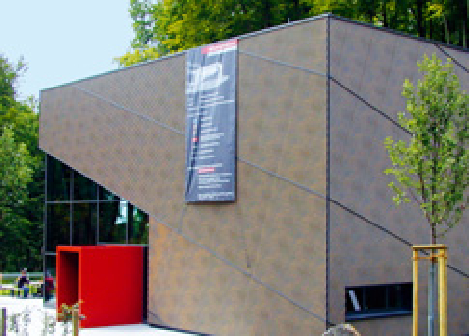

Sinusoidal and trapezoidal aluminium profiles open up a wide range for resource friendly architectural design rich in form and colour
Aluminium is a fascinating and very universal building material for facades, ceilings and roofs. Moreover, the following aspects speak in favour of the preferred application in the old building and of the modern architecture
- the low mass and high stability
- the resistance to weathering and corrosion
- the high heat reflectance
- maintenance free and long service life
- the creative variety and aesthetics of the material

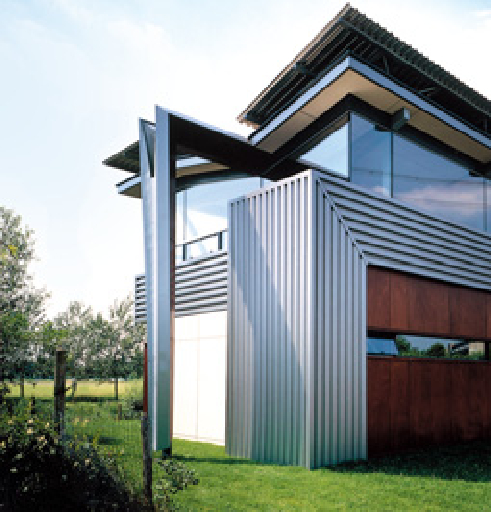

Surface-coated aluminium profiles offer various application possibilities for the design of facades, roofs and ceilings
There are many advantages to the use of coloured surface refinement.
By means of the reaction with oxygen, a dense oxide layer is formed on the alumin- ium surfaces. It protects the material from aggressive weather effects. Therefore, Aluform systems of sinusoidal and trap- ezoidal profiles can be applied as mill fi- nish smooth or stucco embossed surface for facades and roofs. Changes of colour, gloss and surface finish caused by the we- ather may affect the aesthetic impression and exclude a satisfactory cleaning.
Coloured aluminium profiles offer various possibilities of the architectural impact for coated facades and roofing. Colour coatings with Polyester or Polyvinylidene Fluoride (PVdF) guarantee a high colour brilliance and successful facade cleaning for a long time.
Functional anti-condensation and anti-drum coatings extend the application range of sinusoidal and trapezoidal aluminium profiles

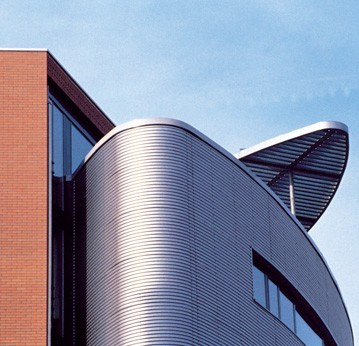

Sinusoidal and trapezoidal aluminium profiles in special colours open up new creative scopes. Surface structure and colouring stand for the modern and very individual aesthetics of the architectural design.
ANTI-CONDENSATION COATING In order to prevent a dropping of conden- sate in case of cold roof constructions, there is a possibility to provide aluminium profiled panels with an anti-condensation coating. For detailed information about profiles with anti-condensation coating see the brochure No. 010 „Anti-condensation coating“.
ANTI-DRUM COATING To reduce drone sounds (noise, rainfall, hail) aluminium profiles can additionally be coated with an anti-drone agent. For detailed information about profiles with anti-drum coating see the brochure No. 011 „Anti-drum coating“.
PERFORATED PROFILES All profiles can also be delivered in perfor- ated version, according to the standard in the hole pattern Rv 3 – 5 and Rv 5 – 8. More hole patterns on request. For detailed information about perforated profiles see the brochure No. 760 „Perforated profiles“.
ALUTHERM ® Sandwich Elements
Ecological and economic issues are becoming increasingly important in the building sector. You can make a contribution towards cost-effective planning and design work by using ALUTHERM Aluform sandwich elements.
Ecological and economic issues are becoming increasingly important in the building sector. You can make a contribution towards cost-effective planning and design work by using ALUTHERM Aluform sandwich elements.
Experienced engineers in application engi- neering advise building owners, planners and installation companies
The continual production of the elements provides an even thermal insulation layer, which guarantees the best possible heat protection in conjunction with the diffusion- resistant covering layers made of aluminium.
The use of aluminium panels as the outer and inner covering means that the dead weight is comparatively low. Considerable savings can be made in installing the elements, because they are so easy to handle.
ALUTHERM means coverings made of aluminium – i.e. a serviceable life that lasts decades, even if the atmosphere contains aggressive industrial chemicals.
The elements have been classified at building material class B1 according to DIN 4102-1 or B-s3-d0 according to DIN EN 13501-1 in terms of fire protection.
Alutherm is a quality product from Aluform System GmbH & Co. KG. The quality of the elements is constantly being monitored. Independent institutes confirm that the required quality levels are met at regular intervals.
Planners have access to the extensive range of accessories when carrying out the detailed planning work – e.g. tooth-profiled sheet metal, connecting pieces, eaves pieces, bargeboard elements etc.
Suitable equipment (belts, cross beams) need to be made available in good time to unload the parts without any problems. Any damage to the packaging or the ALUTHERM elements must be recorded on the delivery note and be confirmed by the freight carrier.
The packaged ALUTHERM elements can be laid down and stored on an even and dry base in the state that they are delivered without the need for any other protective measures. They have to be secured against wind or storm damage.
The specifications listed in the enclosed brochure match the latest standards of technology and our production capabilities at the time of printing. We reserve the right to make changes of a technical nature.
